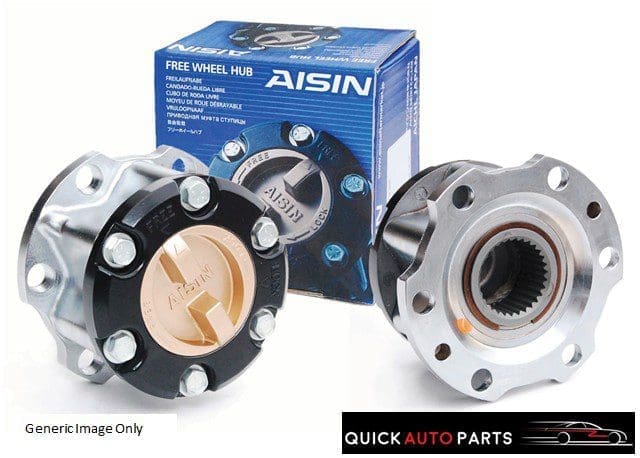

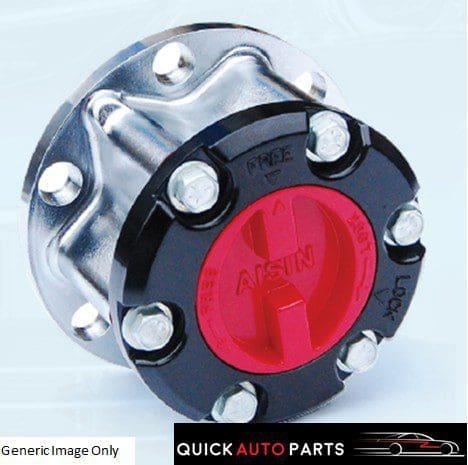

AISIN free wheel hubs allow the front wheels to rotate freely when unlocked from the front axle. This reduces the mechanical resistance of the front portion of the drivetrain when four wheel drive is not in use.
Compact in design and durable against the toughest terrain, AISIN freewheel hubs are manufactured to the highest standards and are engineered to Original Equipment specifications.
The robust AISIN locking mechanism provides reliable connection of the drivetrain power to the wheels in four wheel drive mode and the large AISIN manual dial allows the user to effortlessly change from two wheel drive to four wheel drive mode.
IMPORTANT – There are two different free wheel hubs that suit this vehicle. In order to determine if this free wheel hub suits your vehicle, measure your stud diameters and ensure the number matches the number listed in the specifications below.
These free wheel hubs are only suitable for vehicles that have manual locking front hubs.
Here’s the specs:
Stud Diameter (mm): 8
Spline Diameter (mm): 33
No.of Teeth: 30
Hub Outside Diameter (mm): 105
Pitch Circle Diameter (bolt hole circle diameter) (mm): 90
Core Material: Steel
Hub Colour Pattern: Silver/Black/Gold Twist
Standard spec front only (non electronic)
Toyota Landcruiser HZJ73R 4.2L Diesel 01/1990 – 08/1999 Japan
Toyota Landcruiser HZJ71R 4.2L Diesel 08/1999 – 08/2004 Japan
Toyota Landcruiser FZJ80R 4.5L Petrol 11/1992 – 02/1998 Japan
