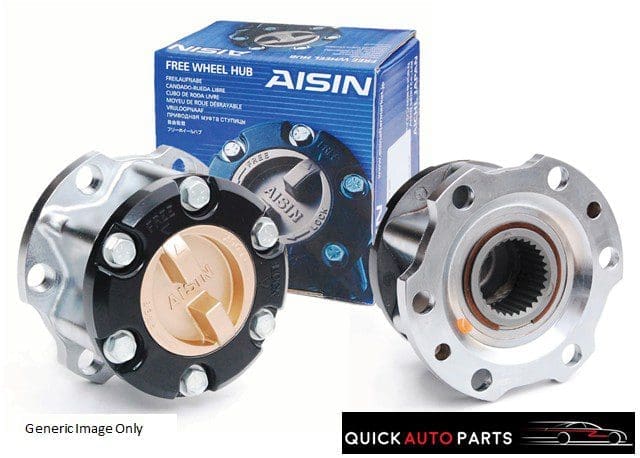

Free Wheel Hubs for Toyota Landcruiser VDJ76R 4.5L Diesel

Description

AISIN free wheel hubs allow the front wheels to rotate freely when unlocked from the front axle. This reduces the mechanical resistance of the front portion of the drivetrain when four wheel drive is not in use.

Compact in design and durable against the toughest terrain, AISIN freewheel hubs are manufactured to the highest standards and are engineered to Original Equipment specifications.

The robust AISIN locking mechanism provides reliable connection of the drivetrain power to the wheels in four wheel drive mode and the large AISIN manual dial allows the user to effortlessly change from two wheel drive to four wheel drive mode.

These free wheel hubs are only suitable for vehicles that have manual locking front hubs.

Here’s the specs:

Stud Diameter (mm): 10

Spline Diameter (mm):  33

No.of Teeth:  30

Hub Outside Diameter (mm):  109

Pitch Circle Diameter (bolt hole circle diameter) (mm):  92

Core Material:  Steel

Hub Colour Pattern:  Silver/Black/Gold Twist

Fits Vehicles:

Toyota Landcruiser VDJ76R 4.5L Diesel 03/2007 – Present Japan

Toyota Landcruiser VDJ200R 4.5L Diesel 11/2007 – Present Japan

Toyota Landcruiser HDJ78R 4.2L Diesel 11/2001 – 02/2007 Japan
