Description
Aisin viscous fan hubs quickly adjust to temperature changes to provide efficient, controlled cooling. Optimal cooling performance is achieved without sacrificing engine efficiency. Aisin viscous fan hubs deliver precise fan speeds in proportion to engine RPM. Optimal cooling performance is achieved through monitoring air temperature accurately without creating excess engine load.
Aisin viscous fan hubs are manufactured with the highest quality materials to withstand heat and vibration. They are engineered to Original Equipment specifications.

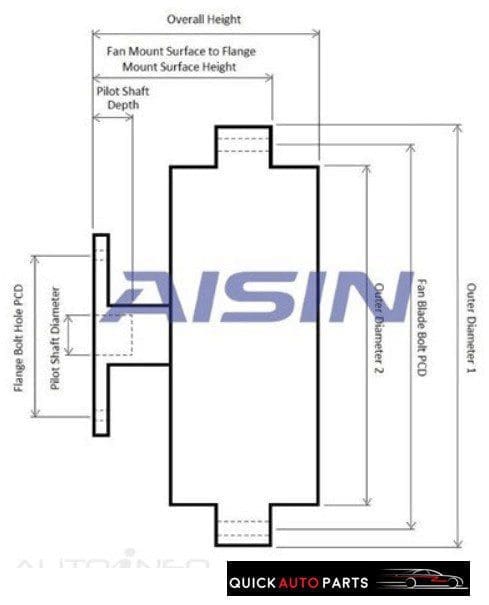

Specifications:
Overall clutch height (mm): 87.0
Outer diameter 1 (mm): 160.0
Outer diameter 2 (mm): 103.8
Fan blade bolt PCD (mm): 136.0
Fan mount surface to flange mount surface height (mm): 67.0
Pilot shaft depth (mm): 20.5
Pilot shaft diameter (mm): 15.9
Flange bolt holes PCD (mm): 62.0
Aisin clutch drive colour code: Grey
Fits Vehicles:
Toyota Hiace LH184R 3.0L Diesel 5L 10/2000 – 02/2005 Japan
Toyota Hiace LH162R 3.0L Diesel 5L 08/1998 – 08/2004 Japan
Toyota Hiace LH172R 3.0L Diesel 5L 10/2000 – 02/2005 Japan
