Description

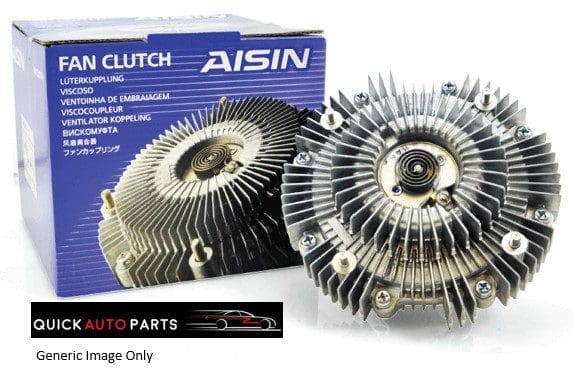

Aisin viscous fan hubs quickly adjust to temperature changes to provide efficient, controlled cooling. Optimal cooling performance is achieved without sacrificing engine efficiency. Aisin viscous fan hubs deliver precise fan speeds in proportion to engine RPM. Optimal cooling performance is achieved through monitoring air temperature accurately without creating excess engine load.
Aisin viscous fan hubs are manufactured with the highest quality materials to withstand heat and vibration. They are engineered to Original Equipment specifications.

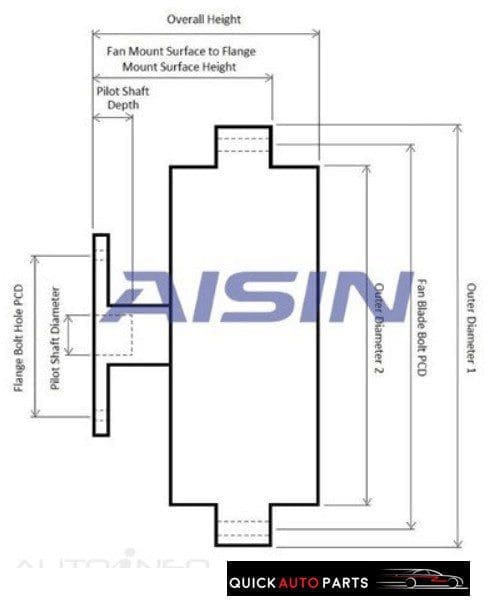

Specifications:
Overall height (mm): 75.3
Outer diameter 1 (mm): 136.0
Outer diameter 2 (mm): 103.8
Fan blade bolt PCD (mm): 122.0
Fan mount surface to flange mount surface height (mm): 53.0
Pilot shaft depth (mm): 12.0
Pilot shaft diameter (mm): 15.9
Flange bolt holes PCD (mm): 44.0
Aisin clutch drive colour code: Red
Fits Vehicles:
Toyota Hilux YN81R 2.0L Petrol 3YE 08/1994 – 08/1997
Toyota Hilux YN61G 2.0L Petrol 3YE 1984 – 1989
Toyota Hilux YN130R 2.0L Petrol 3YE 05/1989 – 07/1991
