Description

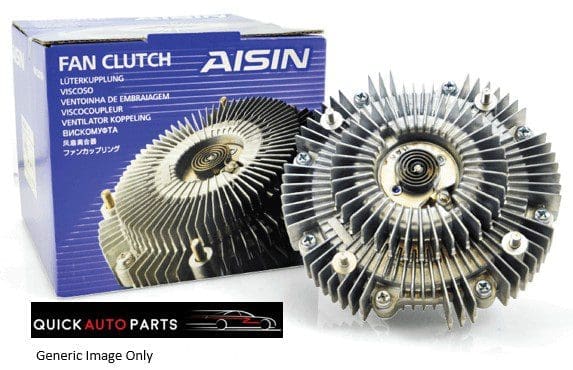

4Aisin viscous fan hubs quickly adjust to temperature changes to provide efficient, controlled cooling. Optimal cooling performance is achieved without sacrificing engine efficiency. Aisin viscous fan hubs deliver precise fan speeds in proportion to engine RPM. Optimal cooling performance is achieved through monitoring air temperature accurately without creating excess engine load.
Aisin viscous fan hubs are manufactured with the highest quality materials to withstand heat and vibration. They are engineered to Original Equipment specifications.
Specifications:
Overall clutch height (mm): 93.8
Outer diameter 1 (mm): 168.0
Outer diameter 2 (mm): 103.8
Fan blade bolt PCD (mm): 136.0
Fan mount surface to flange mount surface height (mm): 76.0
Pilot shaft depth (mm): 22.0
Pilot shaft diameter (mm): 15.9
Flange bolt holes PCD (mm): 62.0
Aisin clutch drive colour code: Pink
Fits Vehicles:
Toyota Hilux GGN25R 4.0L Petrol 1GRFE 03/2005 – 09/2015 Thailand
Toyota Hilux GGN15R 4.0L Petrol 1GRFE 03/2005 – 09/2015 Thailand
Toyota Hilux GGN125R 4.0L Petrol 1GRFE 07/2015 – 09/2017 Thailand
Toyota Hilux GGN120R 4.0L Petrol 1GRFE 07/2015 – 09/2017 Thailand
