Description
Aisin viscous fan hubs quickly adjust to temperature changes to provide efficient, controlled cooling. Optimal cooling performance is achieved without sacrificing engine efficiency. Aisin viscous fan hubs deliver precise fan speeds in proportion to engine RPM. Optimal cooling performance is achieved through monitoring air temperature accurately without creating excess engine load.
Aisin viscous fan hubs are manufactured with the highest quality materials to withstand heat and vibration. They are engineered to Original Equipment specifications.

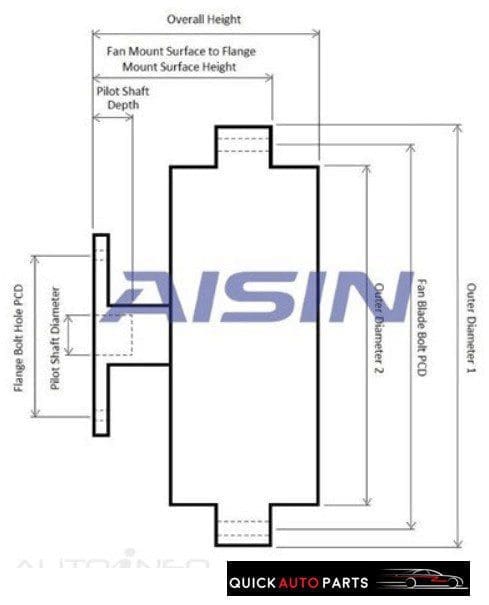

Specifications:
Overall height (mm): 69.5
Outer diameter 1 (mm): 136.0
Outer diameter 2 (mm): 103.8
Fan blade bolt PCD (mm): 122.0
Fan mount surface to flange mount surface height (mm): 52.0
Pilot shaft depth (mm): 23.0
Pilot shaft diameter (mm): 15.9
Flange bolt holes PCD (mm): 62.0
Aisin clutch drive colour code: Steel teal
Fits Vehicles:
Toyota Hilux RZN147R 2.0L Petrol 1RZE 11/1997 – 10/2002 Japan
Toyota Hilux RZN147R 2.0L Petrol 1RZE 11/1997 – 10/2002 Thailand
