Description

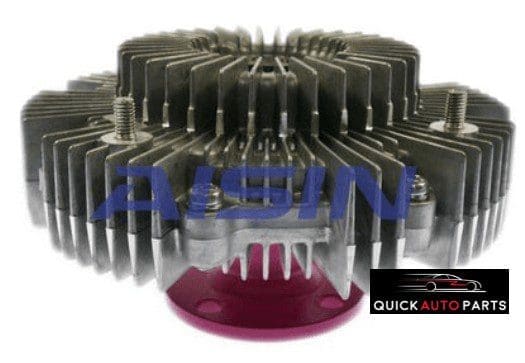

4Aisin viscous fan hubs quickly adjust to temperature changes to provide efficient, controlled cooling. Optimal cooling performance is achieved without sacrificing engine efficiency. Aisin viscous fan hubs deliver precise fan speeds in proportion to engine RPM. Optimal cooling performance is achieved through monitoring air temperature accurately without creating excess engine load.
Aisin viscous fan hubs are manufactured with the highest quality materials to withstand heat and vibration. They are engineered to Original Equipment specifications.
Aisin provides a 1 year/20,000km warranty on their viscous fan hubs, subject to manufacturer’s conditions.
Free delivery to all Australian destinations*.

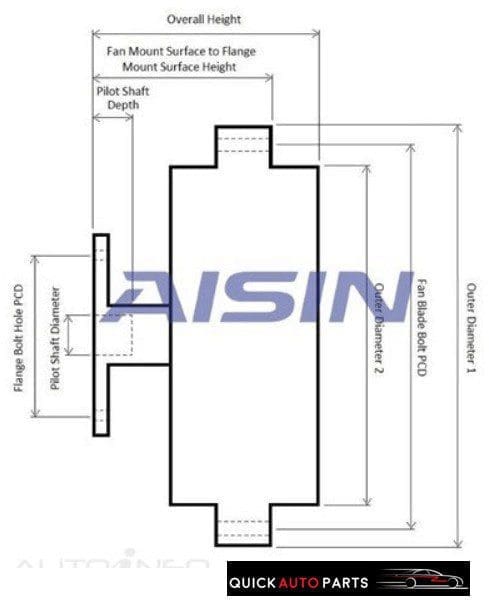

Specifications:
Overall clutch height (mm): 93.8
Outer diameter 1 (mm): 168.0
Outer diameter 2 (mm): 103.8
Fan blade bolt PCD (mm): 136.0
Fan mount surface to flange mount surface height (mm): 76.0
Pilot shaft depth (mm): 22.0
Pilot shaft diameter (mm): 15.9
Flange bolt holes PCD (mm): 62.0
Aisin clutch drive colour code: Pink
Fits Vehicles:
Toyota Landcruiser Prado GRJ120R 4.0L Petrol 1GRFE 03/2003 – 10/2009 Japan
